Basic - Reporting Plugin

Introduction

This basic tutorial provides instructions to create a Basic Reporting Plugin called SampleReporting that demonstrates how a plugin can be used to provide numbers for RCC Dashboard metrics. The purpose of this tutorial is to demonstrate usage of plugins in RCC that do not require connecting to a Third Party Tool. Please notice that this basic tutorial uses randomly generated numbers instead of real data from a third-party tool.

Prerequisites

These are assumptions for this Tutorial.

  1. Introductory Tutorial has been completed.

  2. flowdpk is installed and setup.

  3. An active CloudBees Flow instance with DevOps Insight.

  4. Internet connection.

  5. A GitHub account.

Step 1 : Generate a plugin using sample spec from Github

After making sure flowpdk is available in your PATH, create a plugin workspace, typing the name SampleReporting. Copy pluginspec.yaml from the cloned repository to the config directory of your plugin and generate the plugin. Please note that the values you have provided to the ‘generate workspace’ command, will be replaced by the copied pluginspec.yaml

cd ~/work
git clone https://github.com/electric-cloud-community/flowpdf  ~/temp/flowpdf
flowpdk generate workspace
cp ~/temp/flowpdf/groovy/SampleReporting/config/pluginspec.yaml SampleReporting/config
cd SampleReporting
flowpdk generate plugin

Step 2 : Modify ReportingSampleReporting.groovy

Modify ReportingSampleReporting.groovy (dsl/properties/groovy/lib/ReportingSampleReporting.groovy) to add an imports and a basic implementation of all its generated methods.

Replace the entire content of Reporting.groovy as follows: Optionally you can compare the content below with generated code and do each of these changes one by one.

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
 import com.cloudbees.flowpdf.FlowPlugin
 import com.cloudbees.flowpdf.Log
 import com.cloudbees.flowpdf.components.reporting.Dataset
 import com.cloudbees.flowpdf.components.reporting.Metadata
 import com.cloudbees.flowpdf.components.reporting.Reporting

 import java.time.Instant

 /**
  * User implementation of the reporting classes
  */
 class ReportingSampleReporting extends Reporting {

     /**
      *  Default compareMetadata implementation can compare numeric values automatically
      *  This code is here only as a reference.
     */
     @Override
     int compareMetadata(Metadata param1, Metadata param2) {
         def value1 = param1.getValue()
         def value2 = param2.getValue()

         return value2['buildNumber'].compareTo(value1['buildNumber'])
     }

     @Override
     List<Map<String, Object>> initialGetRecords(FlowPlugin flowPlugin, int i = 10) {
         Map<String, Object> params = flowPlugin.getContext().getRuntimeParameters().getAsMap()
         flowPlugin.log.logDebug("Initial parameters.\n" + params.toString())

         // Generating initial records
         return generateRecords(params, i, 1)
     }

     @Override
     List<Map<String, Object>> getRecordsAfter(FlowPlugin flowPlugin, Metadata metadata) {
         def params = flowPlugin.getContext().getRuntimeParameters().getAsMap()
         def metadataValues = metadata.getValue()
         def log = flowPlugin.getLog()

         log.info("\n\nGot metadata value in getRecordsAfter:  ${metadataValues.toString()}")

         // Should generate one build right after the initial set
         return generateRecords(params, 1, metadataValues['buildNumber'] + 1)
     }

     @Override
     Map<String, Object> getLastRecord(FlowPlugin flowPlugin) {
         def params = flowPlugin.getContext().getRuntimeParameters().getAsMap()
         def log = flowPlugin.getLog()
         log.info("Last record runtime params: ${params.toString()}")

         // Last record will always be 11th.
         int initialPos = 11

         return generateRecords(params, 1, initialPos)[0]
     }

     @Override
     Dataset buildDataset(FlowPlugin plugin, List<Map> records) {
         def dataset = this.newDataset(['build'], [])
         def context = plugin.getContext()
         def params = context.getRuntimeParameters().getAsMap()

         def log = plugin.getLog()
         log.info("Start procedure buildDataset")

         log.info("buildDataset received params: ${params}")
         log.debug("Records in buildDataset()")

         for (def row in records) {
             def payload = [
                     source             : 'Test Source',
                     pluginName         : '@PLUGIN_NAME@',
                     projectName        : context.retrieveCurrentProjectName(),
                     releaseName        : params['releaseName'] ?: '',
                     releaseProjectName : params['releaseProjectName'] ?: '',
                     pluginConfiguration: params['config'],
                     baseDrilldownUrl   : (params['baseDrilldownUrl'] ?: params['endpoint']) + '/browse/',

                     buildNumber        : row['buildNumber'],
                     timestamp          : row['startTime'],
                     endTime            : row['endTime'],
                     startTime          : row['startTime'],
                     buildStatus        : row['buildStatus'],
                     launchedBy         : 'N/A',
                     duration           : row['duration'],
             ]

             for (key in payload.keySet()) {
                 if (!payload[key]) {
                     log.info("Payload parameter '${key}' don't have a value and will not be sent.")
                     payload.remove(key)
                 }
             }

             dataset.newData(
                     reportObjectType: 'build',
                     values: payload
             )
         }

         log.info("Dataset: ${dataset.data}")

         return dataset
     }

     /**
      * Generating test records (imagine this is your Reporting System)
      * @param params CollectReportingData procedure parameters
      * @param count number of records to generate
      * @param startPos first build number for the generated sequence
      * @return List of raw records
      */
     static List<Map<String, Object>> generateRecords(Map<String, Object> params, int count, int startPos = 1) {

         List<Map<String, Object>> generatedRecords = new ArrayList<>()

         for (int i = 0; i < count; i++) {
             String status = new Random().nextDouble() > 0.5 ? "SUCCESS" : "FAILURE"
             Instant generatedDate = new Date().toInstant()
             int buildNumber = startPos + i
             Log.logInfo("StartPos: $startPos, Generating with build number" + buildNumber)

             // Minus one day
             generatedDate.minusSeconds(86400)

             // Adding a seconds, so builds have a time sequence
             generatedDate.plusSeconds(buildNumber)
             String dateString = generatedDate.toString()

             def record = [
                     source             : "SampleReporting",
                     pluginName         : "@PLUGIN_NAME@",
                     buildNumber        : buildNumber,
                     projectName        : params['releaseProjectName'],
                     releaseName        : params['releaseName'],
                     timestamp          : dateString,
                     buildStatus        : status,
                     pluginConfiguration: params['config'],
                     endTime            : dateString,
                     startTime          : dateString,
                     duration           : new Random().nextInt().abs()
             ]

             generatedRecords += (record)
         }

         return generatedRecords
     }
 }

Step 3 : Modify SampleReporting.groovy

Modify SampleReporting.groovy (dsl/properties/groovy/lib/SampleReporting.groovy) to add a basic implementation for the collectReportingData().

Replace the entire content of collectReportingData() as follows. Optionally you can compare the content below with generated code and do each of these changes one by one.

22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
  /**
  * Procedure parameters:
  * @param config
  * @param param1
  * @param param2
  * @param previewMode
  * @param transformScript
  * @param debug
  * @param releaseName
  * @param releaseProjectName
  */
  def collectReportingData(StepParameters paramsStep, StepResult sr) {
      def params = paramsStep.getAsMap()

      if (params['debug']) {
          log.setLogLevel(log.LOG_DEBUG)
      }

      Reporting reporting = (Reporting) ComponentManager.loadComponent(ReportingSampleReporting.class, [
              reportObjectTypes  : ['build'],
              metadataUniqueKey  : params['param1'] + (params['param2'] ? ('-' + params['param2']) : ''),
              payloadKeys        : ['buildNumber'],
      ], this)

      reporting.collectReportingData()
  }

Step 4 : Build, Install, Promote and Configure the Plugin

Use flowpdk to build the plugin. Install the zip in CloudBees Flow and promote it. Create a plugin configuration with any name your prefer, filling in the required fields just to make sure they are non-empty. As the plugin configuration for this sample is a placeholder, the values you type for URL or credentials will not be used.

Step 5 : Setup RCC

Open Flow and create new release ‘SampleReporting release’ in your project.

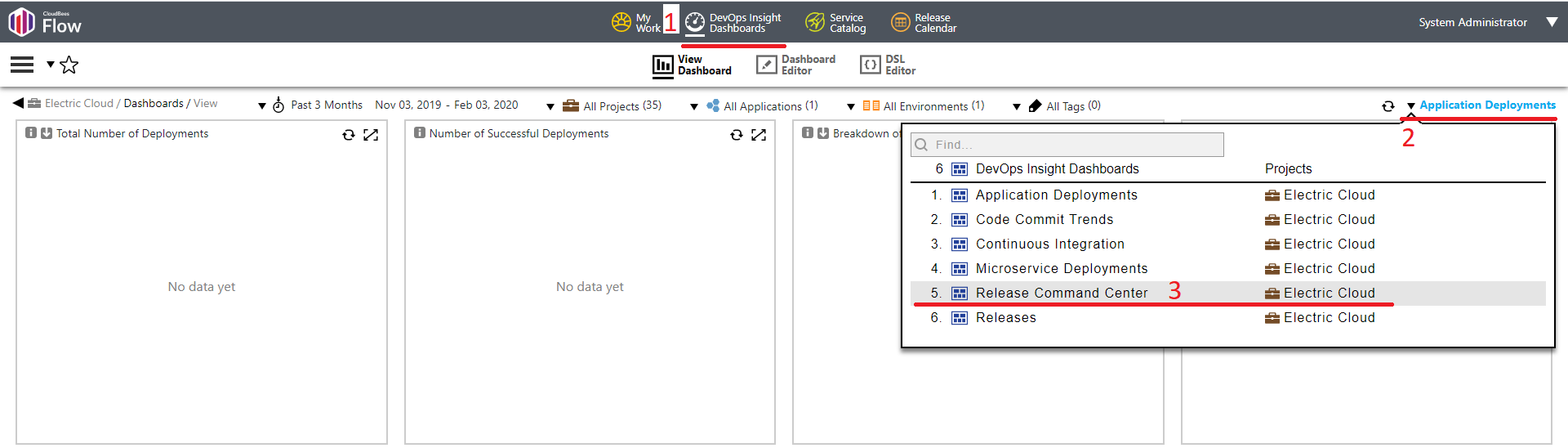

Go to DevOps Insight Dashboards and navigate to the Release Command Center.

../_images/RCC.png

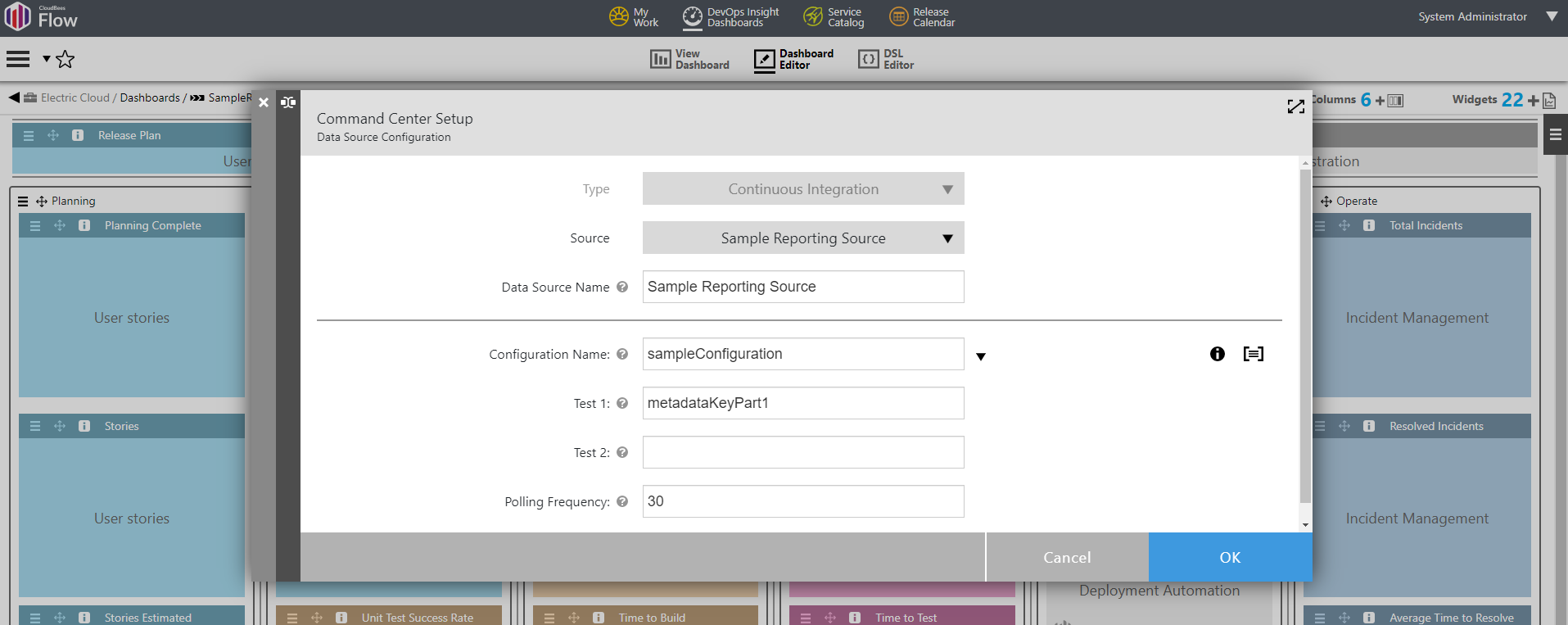

Choose your release from the list and open the Dashboard Editor. Click on the “Setup” link and configure new datasource as follows:

../_images/dataSourceExample.png

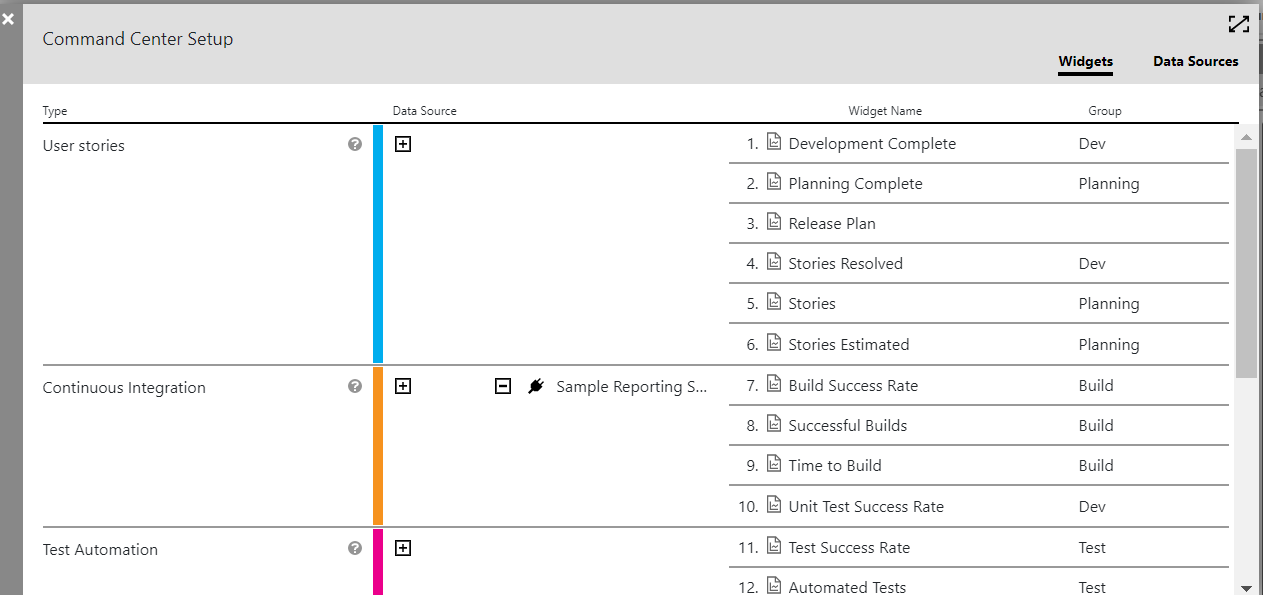

You should have following setup.

../_images/createdDataSource.png

Step 6 : Examine the Schedules created and numbers in the RCC Dashboard

Navigate to the “Platform Home page”. Open your project and notice the following schedules that get automatically created.

../_images/schedules.png

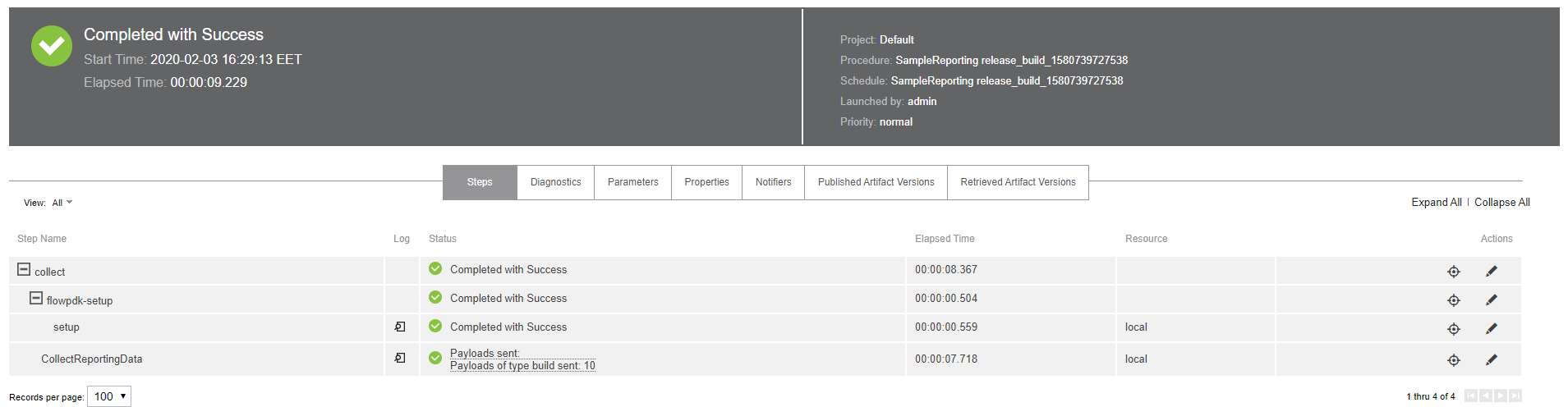

Manually run the schedule to perform an initial data retrieve. Notice the CollectReportingData procedure getting called.

../_images/retrieve_initial.png

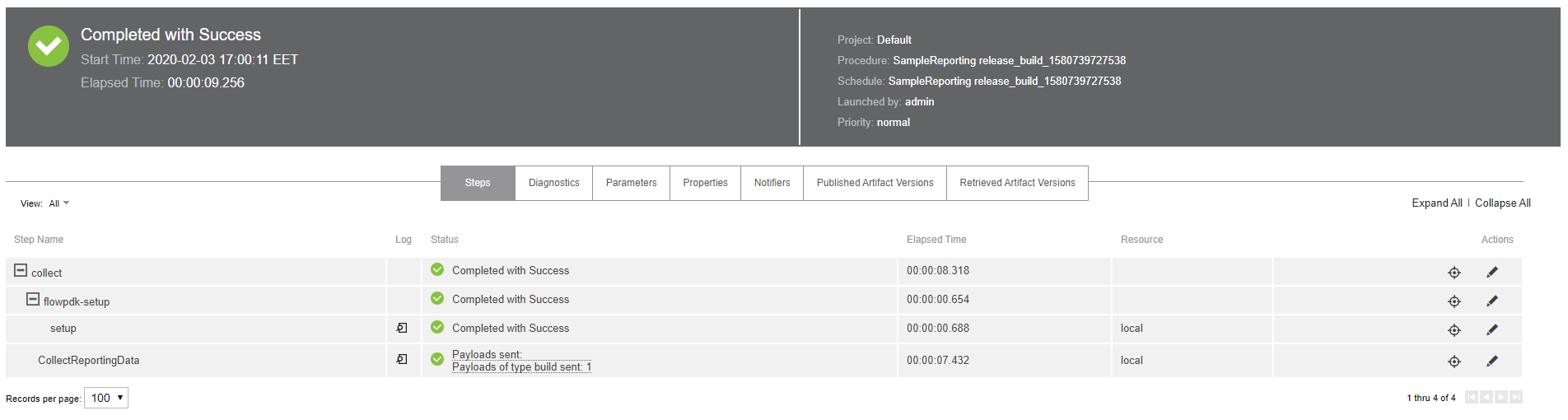

The schedule metadata now contains value “{buildNumber : 10}”. Click on the “Run again” to execute the CRD second time. Our reporting system generated a new record with build number 11. This record was reported and new build number is saved to metadata.

../_images/retrieve_second.png

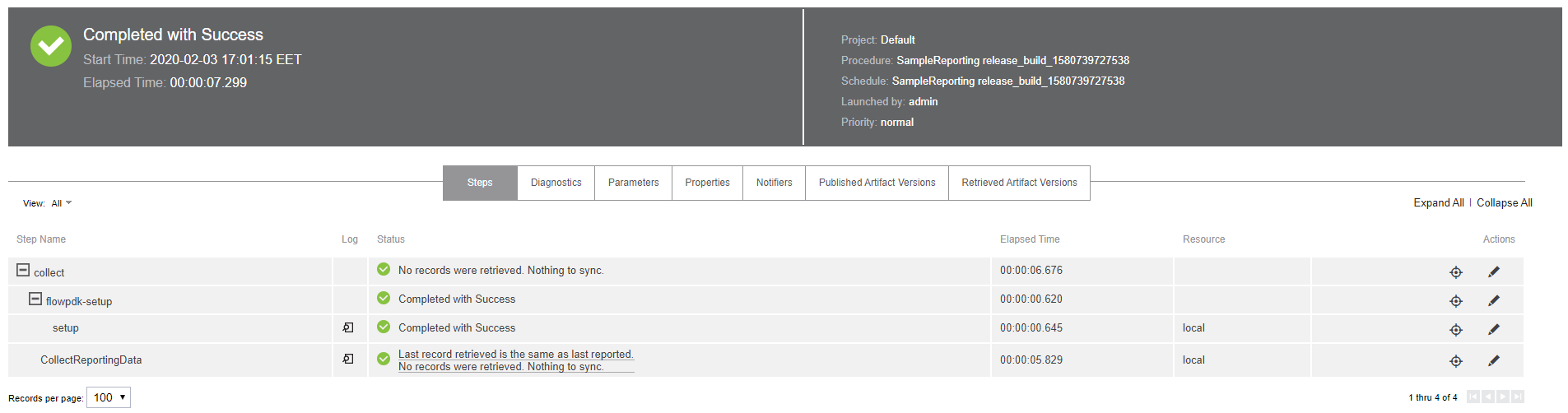

And finally run the schedule one more time. This time the generated record with build number 11 has the same build number as is stored in metadata, so CollectReportingData doesn’t report it.

../_images/retrieve_third.png

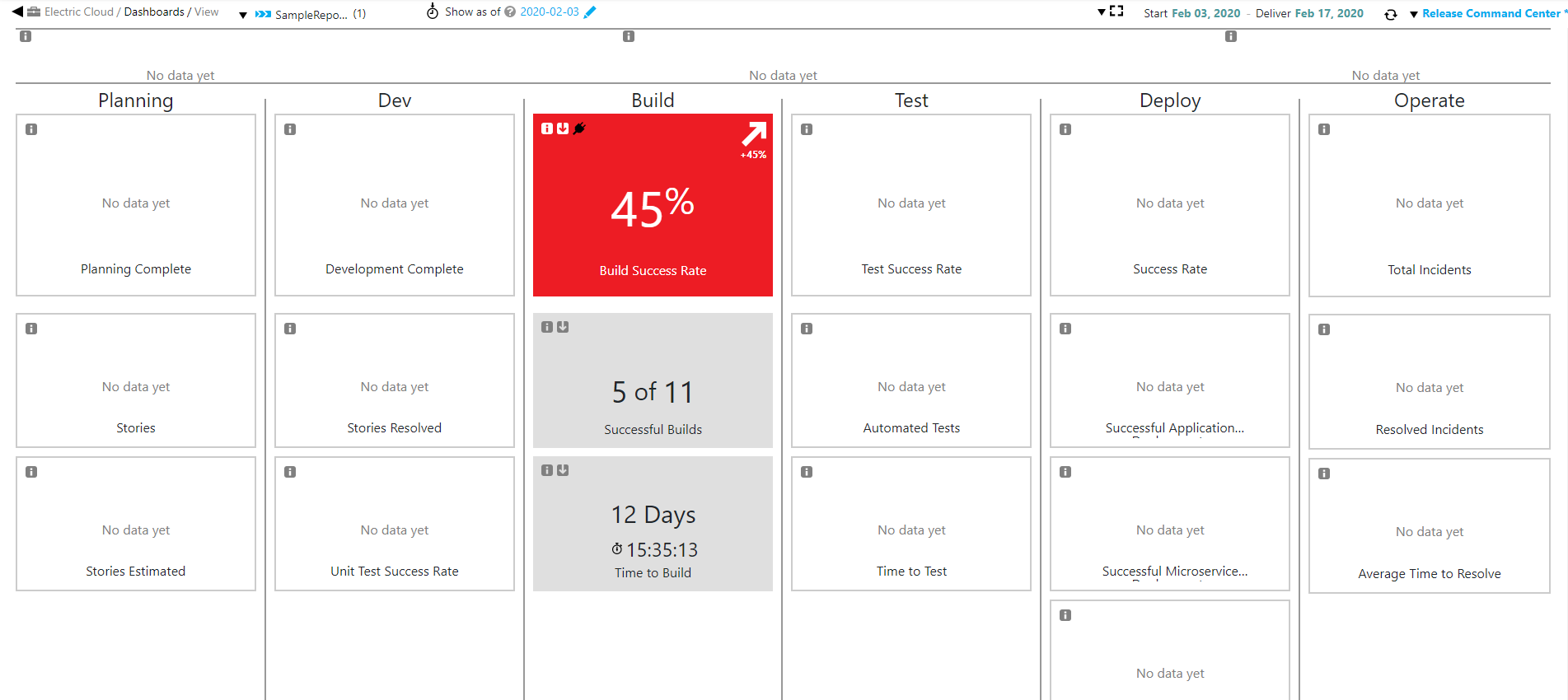

Now go to the RCC and notice numbers getting populated in the RCC Dashboard. Build status and duration is random, so your numbers can be different.

../_images/RCC_numbers.png

Step 6: Summary

This Summary is provided in order to help a Developer conceptualize the steps involved in the creation of this plugin.

Specification
  • pluginspec.yaml provides the declarative interface for the plugin procedure CollectReportingData.

Generated Code
  • flowpdk generates boiler plate code for procedures the reporting component and plugin. The former consists of boiler plate code for the implementation of CollectReportingData, while the later provides the Procedure Interface that gets invoked by RCC.

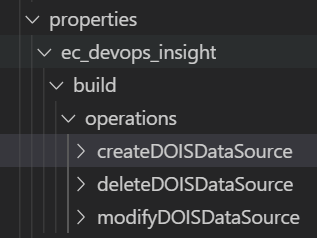

  • flowpdk also generates the boiler plate code for creating the DOIS DSL scripts (see picture below). When creating or modifying the Data Source in RCC, these DSL scripts get executed. Their execution results in creating schedules which in turn call CollectReportingData.

../_images/ec_devops_insight.png
User Modifications
  • Implement compareMetadata, initialGetRecords, getRecordsAfter, getLastRecord, buildDataset.

  • Note that all the above methods are part of the Reporting Component.
